Plastic building site power distribution board 63A (10kA), type 390KS-MH-10, 2xT25, 2xT23, 2xCEE16/5, 2xCEE32/5
Delivered Tomorrow
Stock Availability
62 Piece Still in Stock
In Procurement
Available Between Wed 04.11 and Fri 06.11
30 Piece Ordered from Manufacturer
Product information "Plastic building site power distribution board 63A (10kA), type 390KS-MH-10, 2xT25, 2xT23, 2xCEE16/5, 2xCEE32/5"

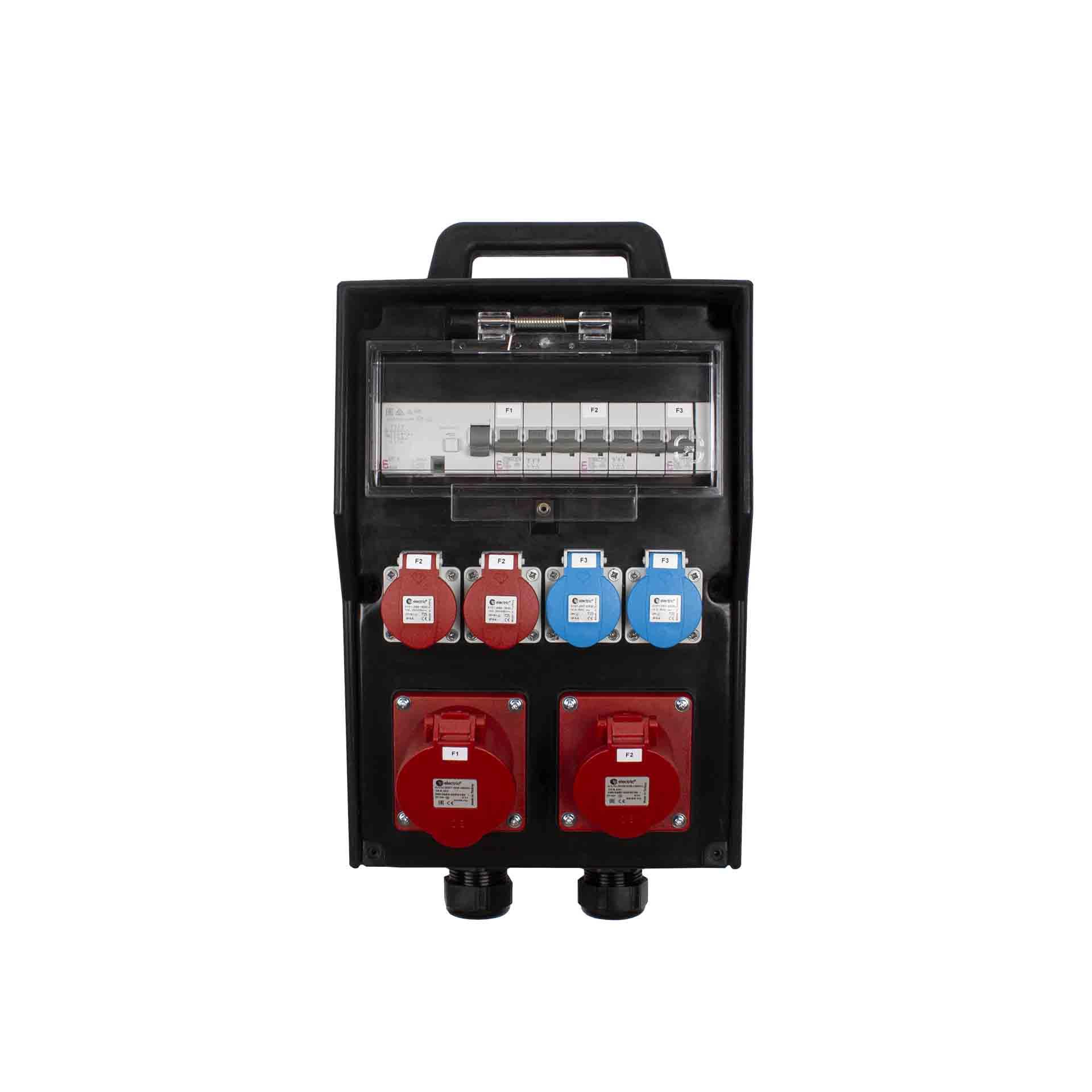

Plastic building site power distributor 390KS-MH-10 63A (10kA)
Our plastic power distribution boards are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements.
Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded design certificates and parts certificates in accordance with IEC EN 61439-4
Features of plastic site power distribution board 390KS-MH-10 63A (10kA):
- With handle
- Direct wall mounting possible
- Dimensions (L x W x D): 390 x 300 x 130mm
- 1 x RCD 63A type A 3PN 30mA
- 1 x LS 32A C 3P 10kAkA
- 2 x LS 16A C 3P 10kA
- 1 x LS 16A C 1P 10kA
- 2 x socket outlet T25 16A 230/400V IP55
- 2 x socket outlet T23 16A 230V IP55
- 3 x socket outlet CEE 16A 5P 400V 6h IP44
- 2 x socket outlet CEE 32A 5P 400V 6h IP44
- 1 x 2.5 metre PUR cable 5x10mm2 with CEE 63A 5P 6h 400V plug
- Preparation for 2x cable gland M25 or M32
- All socket outlet contacts are nickel-plated
Optionally available:
- Base frames available for mobile use
| Item number: | 77302 |
|---|---|
| Characteristic: | C |
| Clock position: | 6h |
| ETIM class: | EC000484 |
| Feed-in: | CEE 63A 5P 6h 400V |
| Frequency: | 50 & 60 Hz |
| Halogen-free: | Yes |
| Number of modules: | 14 |
| Number of sockets: | 9 |
| Protection class: | IP 44, IP55 |
|---|---|
| Rated current: | 63A |
| Rated voltage: | 230/400V |
| Residual current type: | A |
| Short-circuit resistance: | 10kA |
| Socket selection: | CEE 16A 5P 6h IP44, CEE 32A 5P 6h IP44, T23 16A IP55, T25 16A IP55 |
| With connection cable: | Yes |
