Plastic building site power distribution board 32A, type 300KS-MH-07, 2xT25, 1xT23, 1xT13, 1xCEE16/5, 1xCEE32/5

Name: Plastic building site power distribution board 32A, type 300KS-MH-07, 2xT25, 1xT23, 1xT13, 1xCEE16/5, 1xCEE32/5
Brand: Normrahmen AG
SKU: 77217
Price: 177.77 CHF
Availability: InStock

CHF 177.77

Price for: 1 Piece

Prices incl. VAT plus shipping costs

Piece

In Stock
Delivered Tomorrow

Stock Availability

89 Piece Still in Stock

In Procurement

Available Between Wed 04.11 and Fri 06.11

100 Piece Ordered from Manufacturer

Unit: 1 Piece

Prod. No: 77217

EAN: 8693151701111

Item number: 77217

EAN: 8693151701111

Order for more CHF 79.00 and you will receive your order free of shipping costs.

Your advantages with Normrahmen AG

Free shipping from 79 CHFwithin Switzerland

Production & Developmenthigh quality products

Everything from a single source60 day return policy

Attractive cost advantagesthanks to our own production

Product information "Plastic building site power distribution board 32A, type 300KS-MH-07, 2xT25, 1xT23, 1xT13, 1xCEE16/5, 1xCEE32/5"

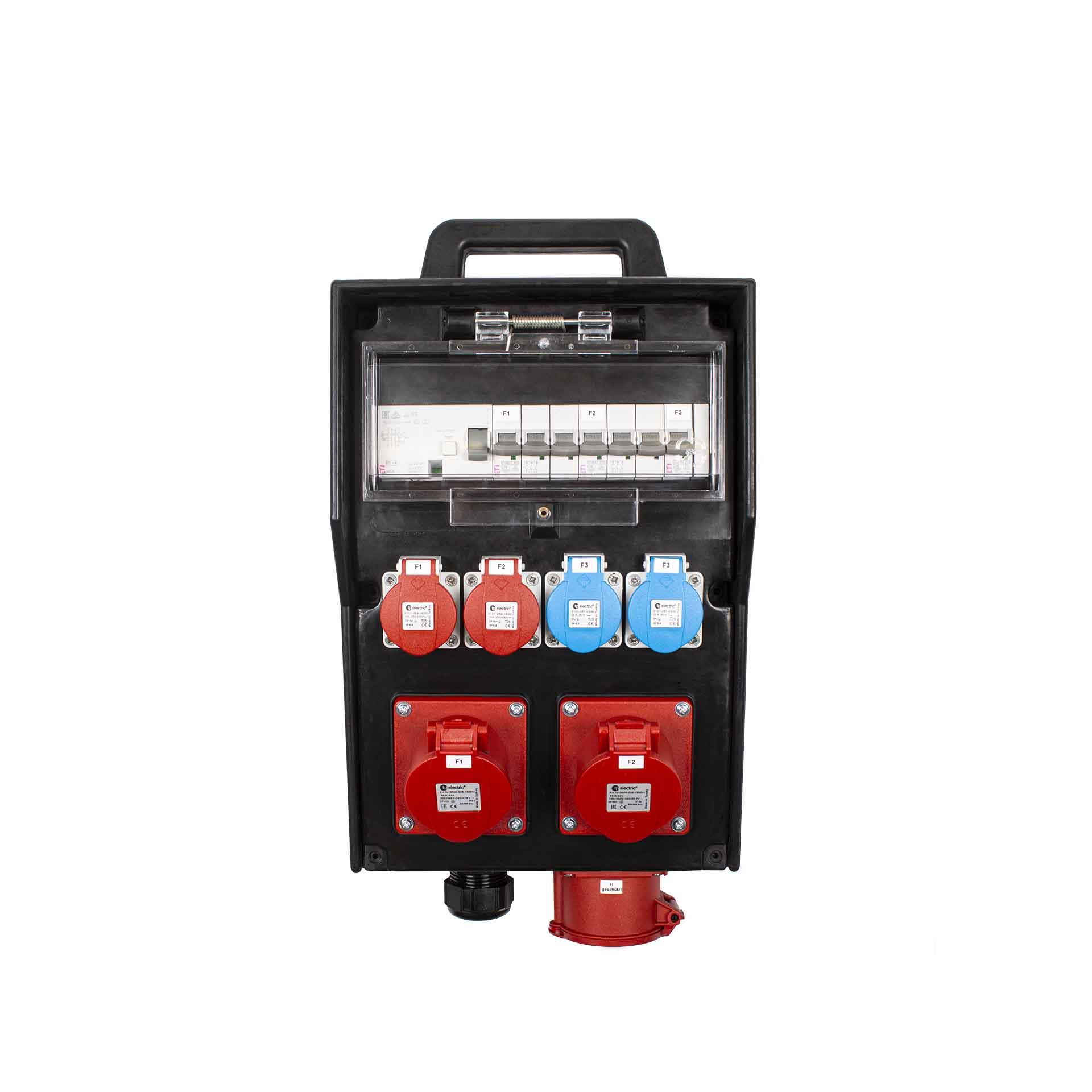

Plastic construction site power distribution unit 300KS-MH-07 32A

Our plastic power distribution units are extremely practical thanks to their compact and lightweight design. Suitable for industry, commerce, trade and public areas. The plastic material is environmentally friendly and chemical-resistant. Complies with all currently applicable regulations and standards (IEC EN-61439). The distribution units can also be configured to your individual requirements.

Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey RAL 7035, IP44, fully ready for connection, certified type approvals and unit certificates in accordance with IEC EN 61439-4

Features of the 300KS-MH-07 32A plastic site power distribution unit:

With handle
Direct wall mounting possible
Dimensions (L x W x D): 300 x 260 x 130 mm
1 x RCD 40A Type A 3PN 30mA
2 x MCB 16A C 3P 6kA
1 x MCB 16A C 1P 6kA
1 x MCB 13A C 1P 6kA
2 x T25 16A 230/400V IP55 socket
1 x T23 16A 230V IP55 socket
1 x T13 socket 10A 230V IP55
1 x CEE 16A 5P 400V 6h IP44 socket
1 x CEE 32A 5P 400V 6h IP44 socket
1 x CEE 32A 5P 400V 6h IP44 appliance plug
Prepared for 2x M25 or M32 cable glands
All socket contacts are nickel-plated

Optionally available:

Base frames available for mobile use

Item number:	77217
Characteristic:	C
Clock position:	6h
ETIM class:	EC000484
Feed-in:	CEE 32A 5P 6h 400V
Frequency:	50 & 60 Hz
Halogen-free:	Yes
Number of modules:	12
Number of sockets:	7

Protection class:	IP 44, IP55
Rated current:	32A
Rated voltage:	230/400V
Residual current type:	A
Short-circuit resistance:	6kA
Socket selection:	CEE 16A 3P 6h IP44, CEE 16A 5P 6h IP44, T13 10A IP55, T25 16A IP55
With connection cable:	No
