Plastic construction site power distribution board 16A, type 300KS-MH-08, 2xT25, 2xT13, 2xCEE16/5, 1xCEE16/3
Delivered Tomorrow
Stock Availability
More than 100 Piece in Stock
Product information "Plastic construction site power distribution board 16A, type 300KS-MH-08, 2xT25, 2xT13, 2xCEE16/5, 1xCEE16/3"

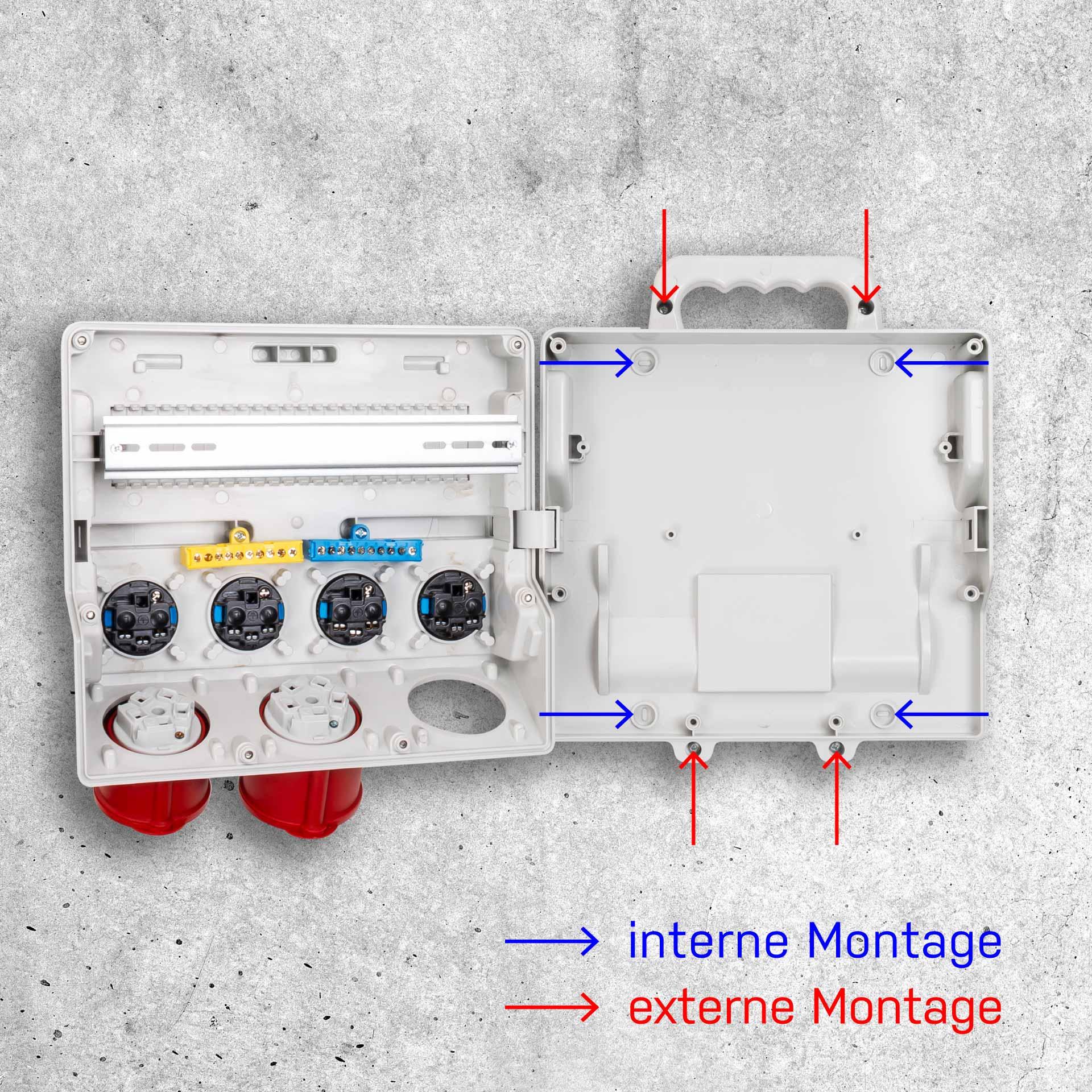

Plastic site power distributor 300KS-MH-08 16A
Our plastic power distributors are very practical thanks to their compact and lightweight design. The plastic material is environmentally friendly and resistant to chemicals. Compliance with all current regulations and standards (IEC EN-61439). The distributors can also be configured according to your individual requirements.
Corrosion-free, UV-resistant, oil and acid-resistant, very good chemical resistance, light grey Ral 7035, IP44, completely ready for connection, recorded design certificates and parts certificates in accordance with IEC EN 61439-4
Features of plastic site power distributor 300KS-MH-08 16A:
- With handle
- Direct wall mounting possible
- Dimensions (L x W x D): 300 x 260 x 130mm
- 1 x FI 40A type A 3PN 30mA
- 2 x LS 16A C 3P 6kA
- 1 x LS 16A C 1P 6kA
- 1 x LS 13A C 1P 6kA
- 2 x socket outlet T25 16A 230/400V IP55
- 2 x socket outlet T13 10A 230V IP55
- 2 x socket outlet CEE 16A 5P 400V 6h IP44
- 1 x socket outlet CEE 16A 3P 230V 6h IP44
- 1 x 1 x 2.5 metre PUR cable 5x2.5mm2 with CEE 16A 5P 6h 400V plug
- Preparation for 2x cable gland M25 or M32
- All contacts of the sockets are nickel-plated
Optionally available:
- Base frames available for mobile use
| Item number: | 77205 |
|---|---|
| Characteristic: | C |
| Clock position: | 6h |
| Feed-in: | CEE 16A 5P 6h 400V |
| Frequency: | 50 & 60 Hz |
| Halogen-free: | Yes |
| Number of modules: | 12 |
| Number of sockets: | 8 |
| Protection class: | IP 44, IP55 |
|---|---|
| Rated current: | 16A |
| Rated voltage: | 230/400V |
| Residual current type: | A |
| Short-circuit resistance: | 6kA |
| Socket selection: | CEE 16A 3P 6h IP44, CEE 16A 5P 6h IP44, T13 10A IP55, T25 16A IP55 |
| With connection cable: | Yes |
