Product information "NH fuse-switch disconnectors E4, size 2, 3P, 185mm, for V connection (3-pole switchable) V2N"

• Centre-symmetrical: cable connection at top/bottom freely selectable
• Variable, convertible cable connection

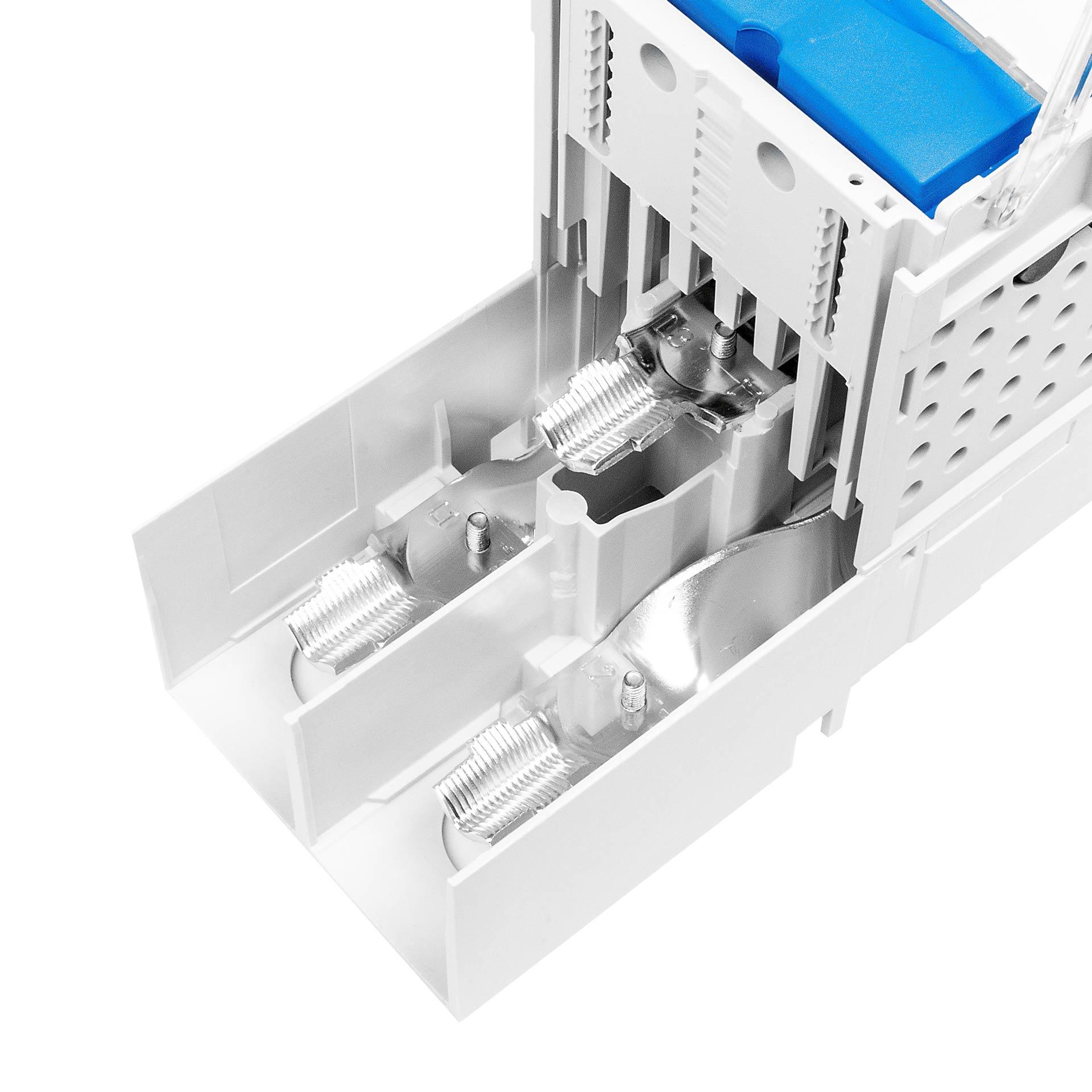

• V-connection terminals: 1x 35–240mm2 and 2x 50–185mm2 double terminal
• Standard installation depth 175mm, also in parallel operation
• IP2X without window
• Reach-in protection with integrated switching stop position
• Optionally with hook contacting
Item number: 66359
Manufacturer’s number: 38125-0020
Cable connection: V-clamp
Colour: grey
Conditional rated short-circuit current Icc: 120kA (AC500V)
Connection technology: Screw terminal
ETIM class: EC001046
Electronic fuse monitoring (ESÜ): No
Halogen-free: Yes
Max. Rated operating current Ie: 400A
Max. Rated operating voltage Ue: 800V
Mounting type: 185mm system
Number of poles: 3
Number of wiring points: 6
Product range: E4
Size: NH2
Suitable for transformer installation: Yes
Switchability: 3-pole switchable
Top or bottom outlet: below, top
With integrated feed-in connection: No
