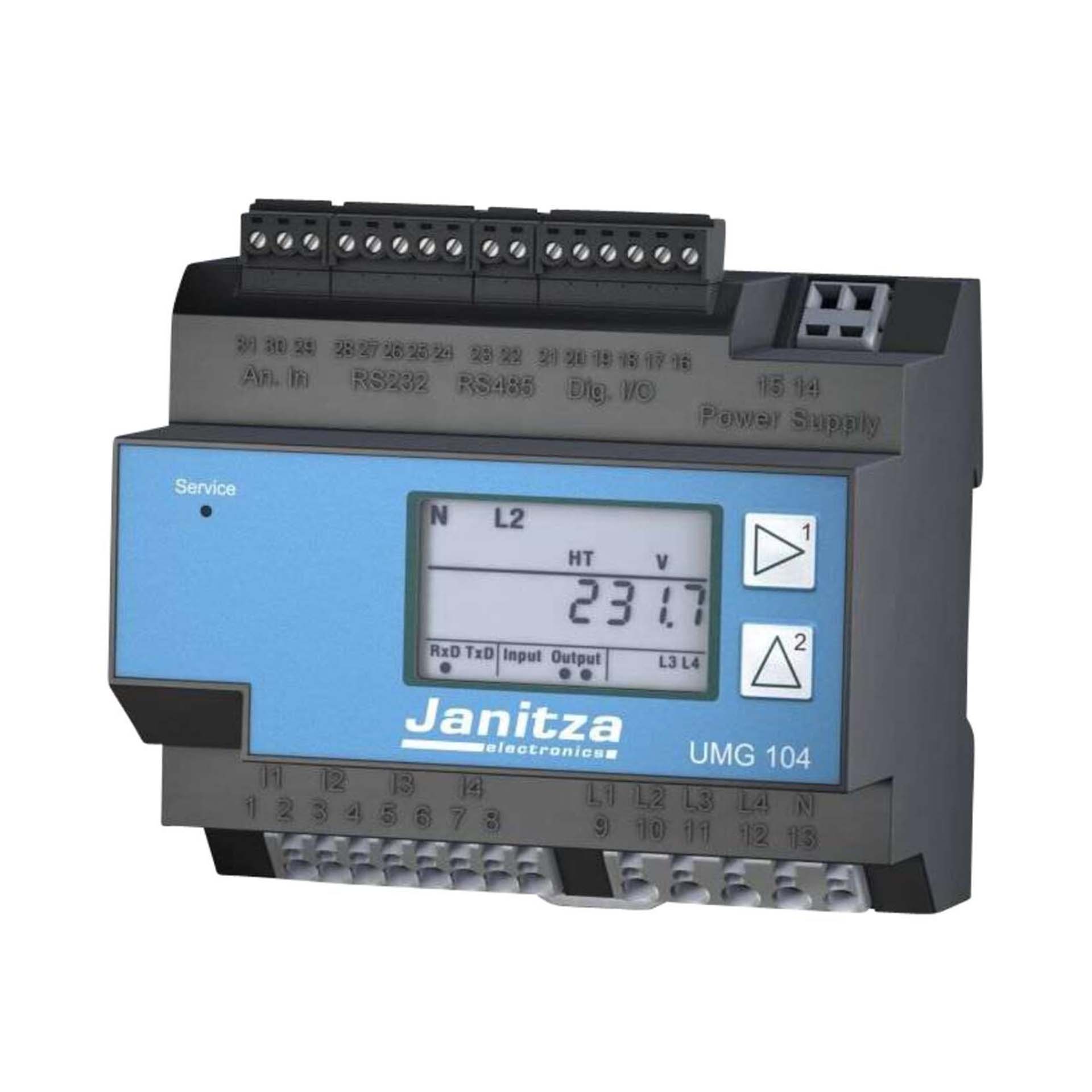

Janitza UMG 104-230V-CH-UL measuring device for DIN

CHF 966.41

Price for: 1 Piece

Prices incl. VAT plus shipping costs

Piece
On Demand
Available Between Tue 24.03 and Wed 25.03
Unit: 1 Piece
Prod. No: 66547
Item number: 66547
Manufacturer number: J.52.20.201
Your advantages with Normrahmen AG
Free shipping from 79 CHFwithin Switzerland
Production & Developmenthigh quality products
Everything from a single source60 day return policy
Attractive cost advantagesthanks to our own production

Product information "Janitza UMG 104-230V-CH-UL measuring device for DIN"

The UMG 104, equipped with a 500 MHz DSP (Digital Signal Processor), is an extremely fast and powerful network analyser. The continuous sampling of the 8 channels with 20 kHz per channel allows the acquisition of all electrical parameters (more than 800 values), min. and max. values, the essential voltage quality values such as harmonics (up to the 40th, per phase with direction detection). Based on this data, production downtimes can be avoided, concepts can be developed, e.g. to reduce electricity costs, measures can be introduced and the UMG 104 can also be used to monitor and log the improvements achieved.
Item number: 66547
Manufacturer number: J.52.20.201
4th current transformer input: Yes
Accuracy A: 0.2%
Accuracy V: 0.2%
Active energy class: 0.5S (.../5 A)
Asymmetry: Yes
Clock: Yes
Current measuring channels: 4
Digital / pulse output: 2
Digital inputs: 2
Distortion factor THD-U / THD-I in %: Yes
Fault recorder function: No
Harmonics V/A: 1.-40.
Integrated logic: Comparator
Memory size: 4 MB
Quadrants: 4
Sampling frequency 50/60 Hz: 20 kHz
Short-term interruptions: Yes
Supply voltage: 95-240 V AC & 135-340 V DC
